Product Parameters

1. Maximum load capacity of normally open interface: AC 250V/10A, DC 30V/10A

2. Sensitivity can be adjusted through potentiometer

3. The module has anti reverse connection function, and reversing the power supply will not damage the module

4. Equipped with power indicator light and relay status indicator light

5. There are 4 fixed bolt holes for easy installation

Product Introduction

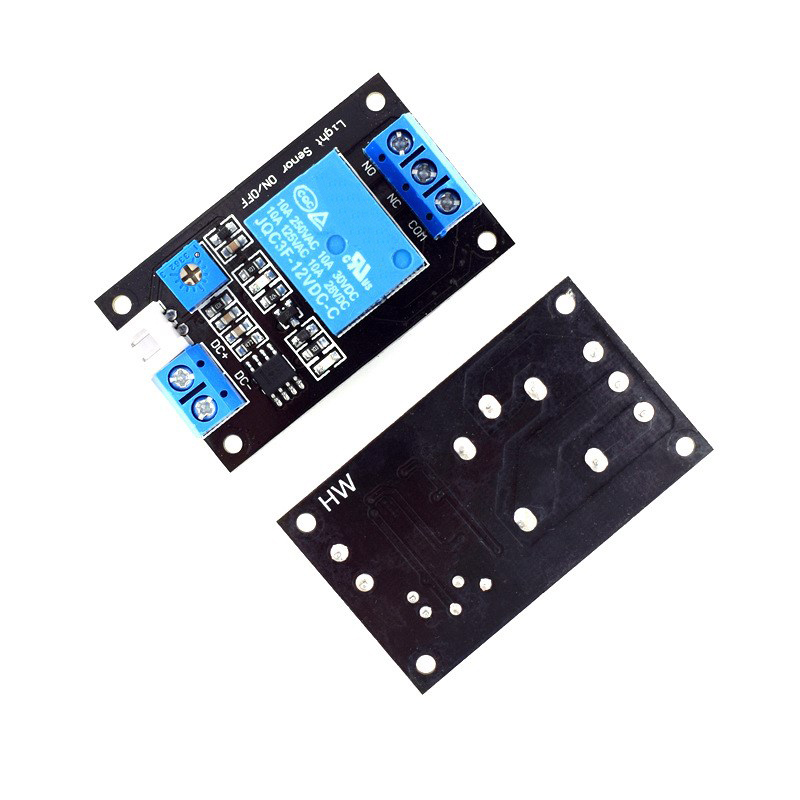

This product is a photoresistor relay that uses photoresistors to sense the intensity of light. It comes with genuine high-quality relays and can directly control AC or DC loads. The maximum load capacity of the normally open interface is AC 250V/10A and DC 30V/10A. Adjust the sensitivity through a potentiometer, set the threshold for starting the relay by adjusting the potentiometer. When it is darker than this threshold, the module relay will engage, and when it is brighter than this threshold, the relay will disconnect; Intelligent adjustment design automatically adjusts the action threshold after the relay is activated, solving the problem of repeated actions at critical values.

This module has three versions to choose from: 5V/12V/24V. HW-282A(5V)、HW-282B(12V)HW-282C(24V)

Product Functions

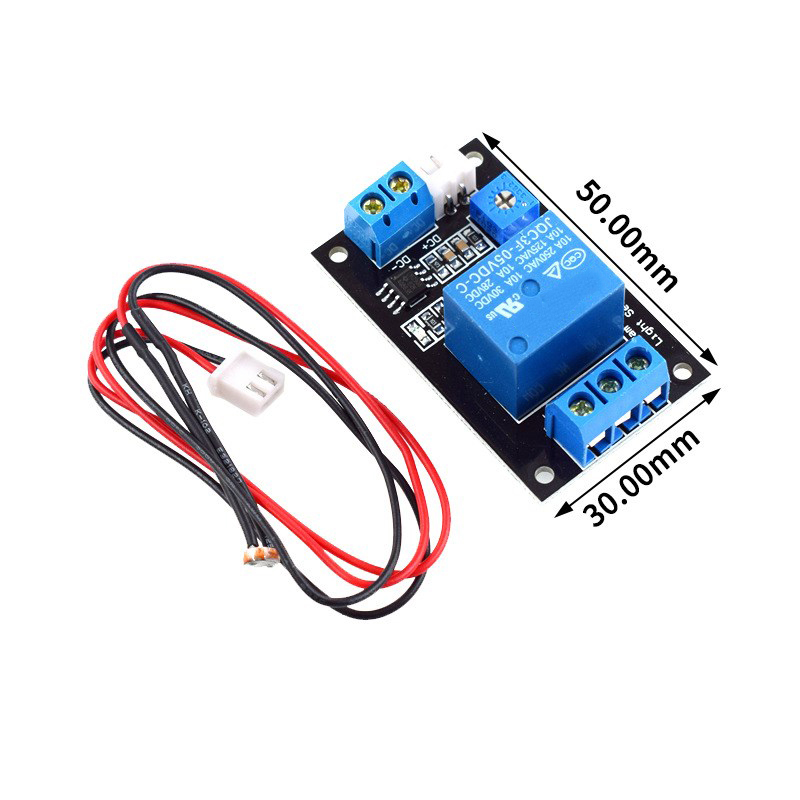

Product Size

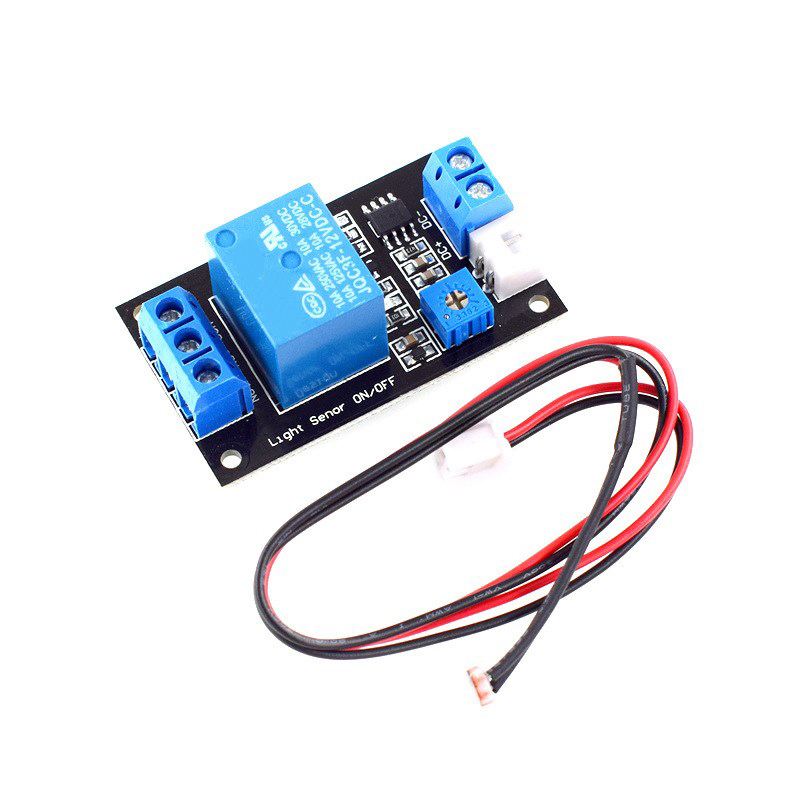

Product Show

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
